SM – 220

Category Jack Hammers Brand: SEOUL

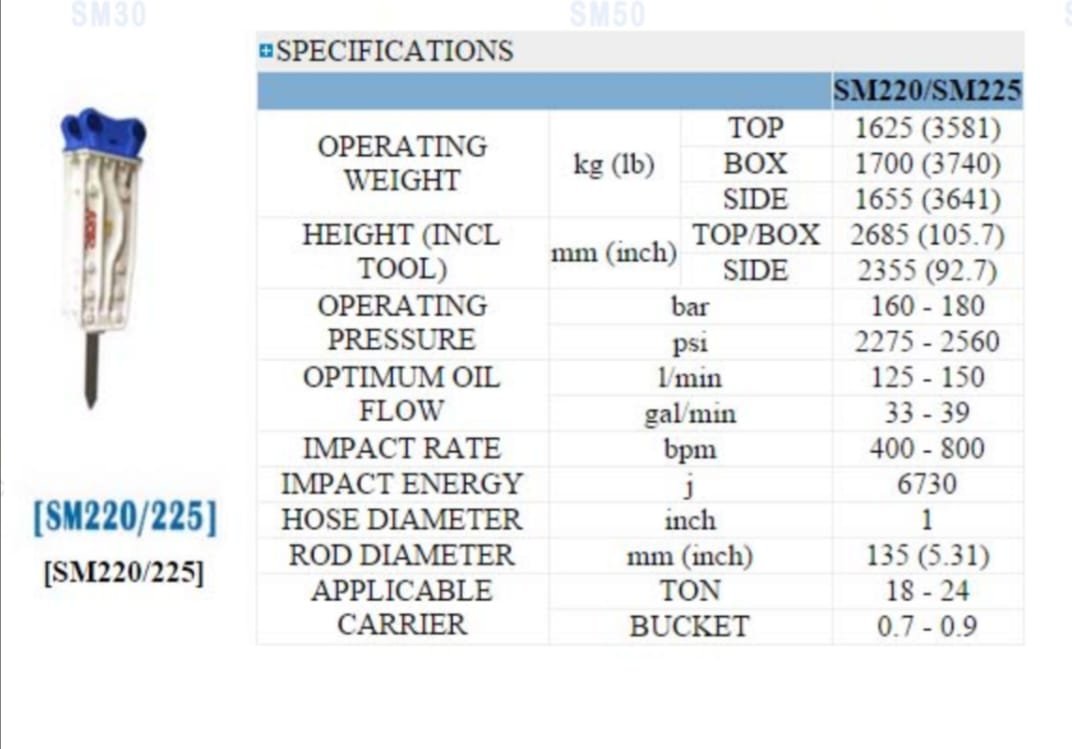

Specification of Jack Hammer

Specification	Value
Operating Weight (kg/lb)	TOP: 1625 (3581), BOX: 1700 (3740), SIDE: 1655 (3641)
Height (mm/in)	TOP/BOX: 2685 (105.7), SIDE: 2355 (92.7)
Operating Pressure (bar/psi)	160–180 (2275–2560)
Optimum Oil Flow (l/min/gal/min)	125–150 (33–39)
Impact Rate (bpm)	400–800
Impact Energy (J)	6730
Hose Diameter (inch)	1
Rod Diameter (mm/in)	135 (5.31)
Applicable Carrier (TON/BUCKET)	18–24 / 0.7–0.9
